Selection Factors for Resistance Materials in Heating Floors:
Temperature Range:
Nichrome or FeCrAl for high-temperature systems.
Carbon-based or CuNi for moderate or low-temperature applications.
Cost:
FeCrAl and stainless steel are more cost-effective than Nichrome.
Durability:
FeCrAl and Nichrome provide excellent long-term performance.
Flexibility:
Carbon fiber and thin-film heating materials are preferred for flexible or lightweight systems.
Typical Materials in Residential Floor Heating:
Nichrome or CuNi for traditional electric heating cables.
Carbon-based materials for modern heating films and mats.
PTC materials in advanced self-regulating systems.

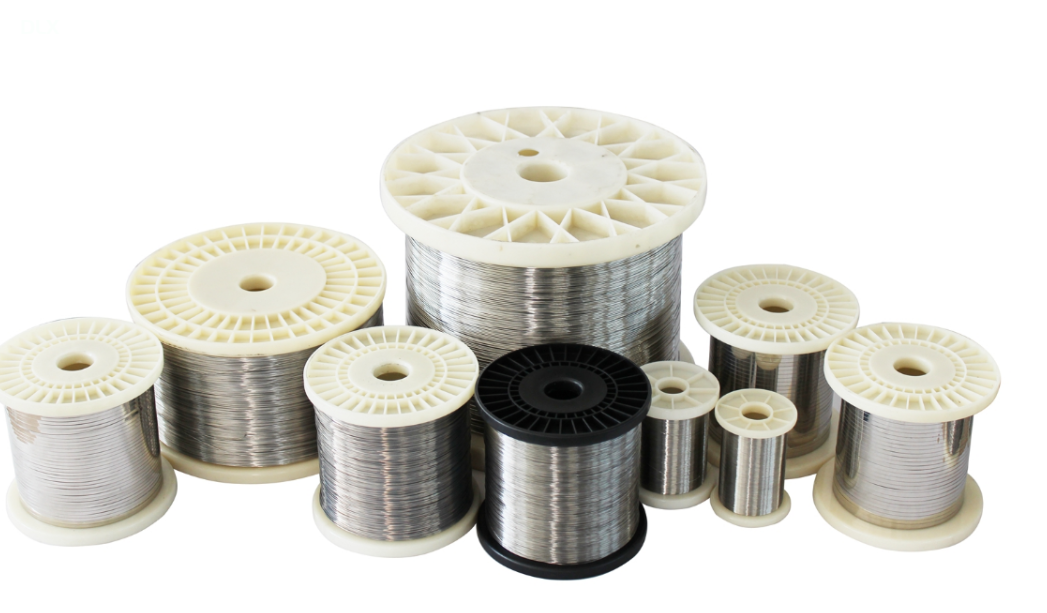

The heating floor system, often referred to as underfloor heating, uses specialized resistance materials designed to provide efficient, durable, and consistent heat output. These materials are embedded in heating cables or mats. Below are the most common types of resistance materials used:
1. Nichrome (Nickel-Chromium Alloy)
Composition: Typically 80% Nickel and 20% Chromium.
Properties:
High resistance to oxidation and corrosion.
Good resistance stability and moderate temperature coefficient of resistance (TCR).
Operates at moderate to high temperatures without significant degradation.
Advantages:
Long-lasting and reliable.
Consistent heat generation across a wide range of temperatures.
Applications:
Widely used in electrical heating systems, including heating cables for underfloor heating.
2. FeCrAl (Iron-Chromium-Aluminum Alloy)
Composition: Predominantly iron with chromium (Cr) and aluminum (Al) as key alloying elements.
Properties:
Excellent oxidation resistance due to the formation of an aluminum oxide layer.
Higher temperature tolerance compared to Nichrome.
More cost-effective than Nichrome.
Advantages:
Suitable for systems that operate at higher temperatures.
Durable in oxidizing environments.
Applications:
Used in industrial and high-temperature floor heating systems.
3. Copper-Nickel Alloys (CuNi)
Composition: Copper with 30-50% Nickel content (e.g., CuNi44).
Properties:
Moderate resistance with excellent corrosion resistance.
Higher resistivity compared to pure copper, making it more efficient for heating applications.
Low temperature coefficient of resistance, ensuring stable performance.
Advantages:
Economical and efficient.
Suitable for moderate-temperature floor heating.
Applications:
Often used in flexible heating cables for residential underfloor heating.
4. Stainless Steel
Composition: Iron-based alloy with chromium and sometimes nickel or other elements.
Properties:
Moderate resistance and excellent mechanical durability.
Corrosion-resistant but less efficient in terms of heating performance compared to Nichrome or FeCrAl.
Advantages:
Strong and cost-effective for certain applications.
Suitable for embedded heating systems.
Applications:
Occasionally used in lower-cost heating cable designs.
5. Carbon-Based Materials
Properties:
High resistivity compared to metallic materials.
Can be used in thin, flexible heating films.
Advantages:
Very thin and lightweight, ideal for floor heating systems where space is a concern.
Provides even heat distribution over large surfaces.
Applications:
Carbon fiber or graphene materials are used in advanced or premium underfloor heating mats.
6. PTC (Positive Temperature Coefficient) Thermistor Materials
Properties:
Resistance increases with temperature, providing self-regulating heating.
Made of conductive polymers or ceramics.
Advantages:
Safe and energy-efficient, as the material automatically reduces current flow at higher temperatures.
Eliminates the need for additional temperature control devices.
Applications:
Used in modern, self-regulating underfloor heating systems.
