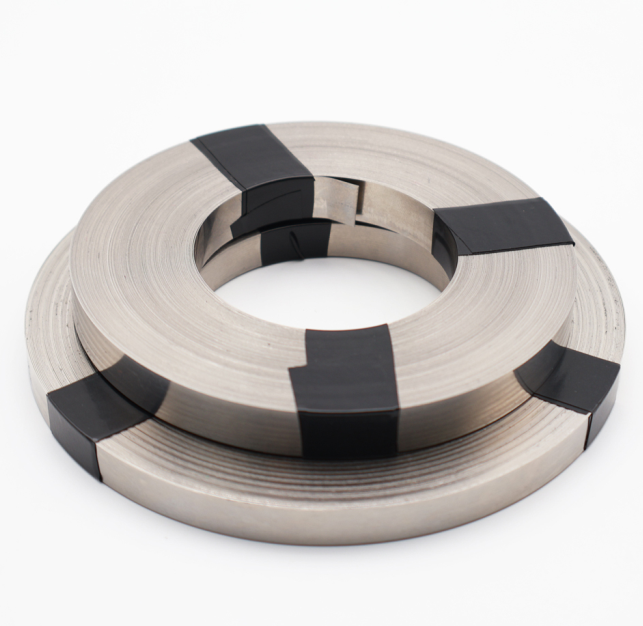

High Elastic Alloy Strip 3J01 / ЭИ702 / 36HXTЮ
Release time：2025-03-09 Strike：149 Inquire Now
What is 3J01 Elastic Alloy?
3J01 precision alloy is an iron-nickel-chromium austenite precipitation strengthening type with high elasticity alloy. After solution treatment, it has good plasticity, low hardness and easy processing and forming. After aging treatment after solid solution or cold strain, high mechanical properties and elastic properties are obtained.3J1 Alloy also named
| Russia | China | USA | France | Japan |
| 36HXTЮ | 3J1 | Ni36CrTiAl | 702 | - |
3J01 Elastic Alloy Chemical Composition:
| Grade | C | S | P | Mn | Si | Ni | Cr | Ti | Al | Co | Mo | W | Fe |
| 3J01 | ≦0.05 | ≦0.02 | ≦0.02 | ≦1.0 | ≦0.8 | 34.5-36.5 | 11.5-13 | 2.7-3.2 | 1.0-1.8 | - | - | - | Bal |
Physical and Chemical Properties:
The 3J01 alloy is a nickel-based superalloy, with the primary alloying elements being nickel, chromium, and aluminum.
It is characterized by its exceptional elastic properties, with a very high yield strength and excellent resistance to plastic deformation.
The alloy has a density of around 8.0 g/cm³, which is slightly lower than some other high-performance nickel-based alloys.
3J01 exhibits excellent corrosion and oxidation resistance, making it suitable for use in harsh environments.
The alloy maintains its mechanical properties and performance even at elevated temperatures, up to around 550°C.
Density (g/cm3) | Resistivity at 20°C ųΩ•m | Elastic Modulus (E/MPa) | Poisson's Ratio (G/MPa) | Magnetic Frequency (K/106) |
| 8.0 | 1.02 | 186500-206000 | 68500-78500 | 150-250 |

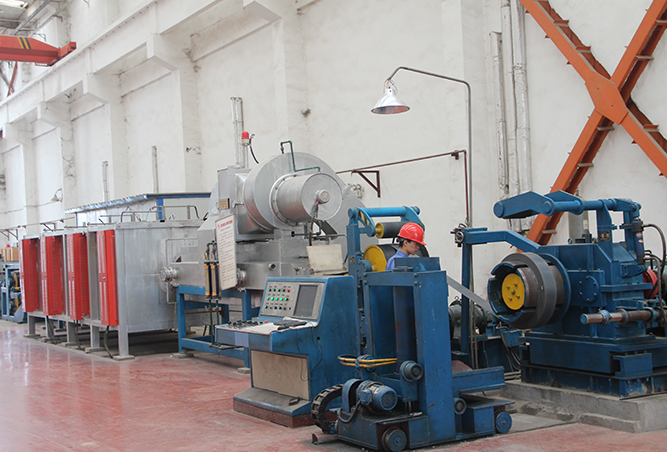

3J01 Elastic Alloy Strip Production Process-Annealing
3J01 Alloy Deliver State
| Form | Treatment | Thick/Diameter(mm) | Tensile Strength/Mpa | Elongation % |
| Strip | Cold Forged | 0.2-2.5 | 1375 | 5 |
| Strip | Annealed | 0.2-1.0 | 1175 | 8 |
| Wire | Cold Drawn | 0.5-5.0 | 1470 | 5 |
| Rod | Cold Drawn | 3.0-18.0 | 1375 | 5 |
