Hot CuNi2 Alloy (NC005) / Cuprothal 05 Copper Nickel Alloy Resistance Wire
- Product Details

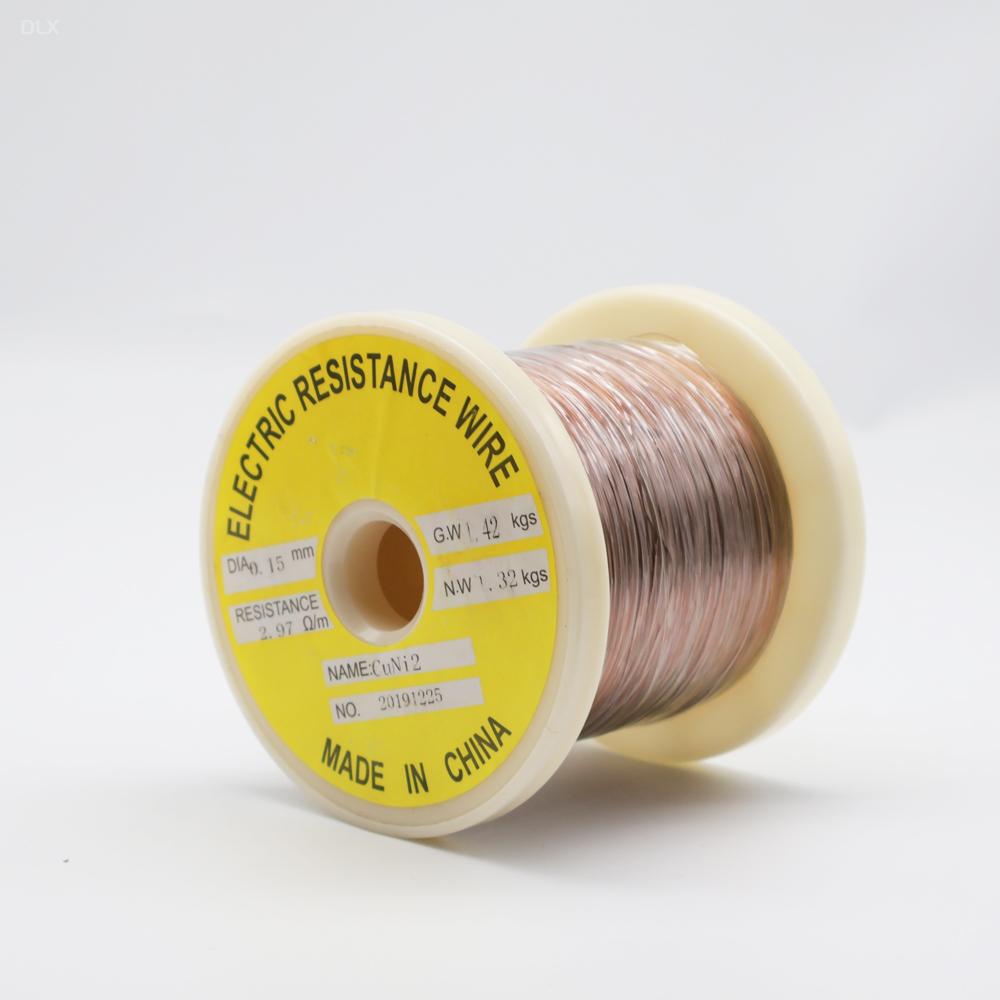

Cuprothal 05 Copper Nickel Alloy Resistance Wire
CuNi2 is an alloy primarily composed of copper (Cu) and nickel (Ni), where the nickel content is around 2%. Here are some key properties and uses of CuNi2 alloy:
Properties:
Corrosion Resistance: CuNi2 alloy exhibits good resistance to corrosion, especially in seawater and marine environments.
Mechanical Strength: It has decent mechanical strength, which can be enhanced through cold working.
Thermal and Electrical Conductivity: The alloy maintains good thermal and electrical conductivity, although lower than pure copper due to the presence of nickel.
Ductility: CuNi2 is known for its excellent ductility, making it easy to form and shape.
Magnetic Properties: This alloy is non-magnetic, which can be beneficial in certain applications.
Uses:
Marine Applications: Due to its corrosion resistance, CuNi2 is often used in marine hardware, desalination plants, and heat exchangers.
Electrical Components: Its good electrical conductivity makes it suitable for electrical connectors, switchgear, and other electrical components.
Coins: Some countries use CuNi2 in the minting of coins.
Automotive Industry: The alloy is used in various automotive components, such as brake and hydraulic systems, due to its strength and corrosion resistance.
Industrial Equipment: CuNi2 is used in various industrial applications, including in the manufacturing of pumps, valves, and other equipment exposed to corrosive environments.
Product Details
| Place Of Origin | China |
| Brand Name | DLX |
| Model Number | CuNi |
Payment & Shipping Terms
| Minimum Order Quantity | 5 |
| Packaging Details | Spool Package With Carton Box, Coil Package With Polybag |
| Delivery Time | 5-21 Days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 300 Tons Per Month |
CuNi Series
Common Name: (CuNi2,NC5)
CuNi2 is a copper-nickel alloy (Cu2Ni98 alloy) with low resistivity for use at temperatures up to 200°C.
CuNi2 is typically used for low-temperature applications such as heating cables in electric blankets and pillows.
CuNi1 The Form we could offer
Size RangeWireRibbonStripRod
dia 0.03-7.5mmdia 8.0-12.0mm(0.05-0.35)*(0.5-6.0)mm(0.50-2.5)*(5-180)mm8-50mm
Properties/ Material | Resistivity ( 200C μΩ.m) | Max.working temperature ( 0C ) | Tensile strength ( Mpa ) | Melting point ( °C ) | Density ( g/cm³ ) | TCR x10-6 / °C (20~600 °C) | EMF vs Cu (μV/ °C) (0~100 °C) |
| NC003(CuNi1) | 0.03 | 200 | 210 | 1085 | 8.9 | <100 | <8 |
| NC005(CuNi2) | 0.05 | 200 | 220 | 1090 | 8.9 | <120 | -12 |
| NC010(CuNi6) | 0.1 | 220 | 250 | 1095 | 8.9 | <60 | -18 |
| NC012(CuNi8) | 0.12 | 250 | 270 | 1097 | 8.9 | <57 | -22 |
| NC015(CuNi10) | 0.1 | 250 | 290 | 1100 | 8.9 | <50 | -25 |
| NC020(CuNi14) | 0.2 | 300 | 310 | 1115 | 8.9 | <30 | -28 |
| NC025(CuNi19) | 0.25 | 300 | 340 | 1135 | 8.9 | <25 | -32 |
| NC030(CuNi23) | 0.3 | 300 | 350 | 1150 | 8.9 | <16 | -34 |
| NC035(CuNi30) | 0.35 | 350 | 400 | 1170 | 8.9 | <10 | -37 |
| NC040(CuNi34) | 0.4 | 350 | 400 | 1180 | 8.9 | 0 | -39 |
| NC050(CuNi44) | 0.5 | 400 | 420 | 1200 | 8.9 | <-6 | -43 |
| Performance | Constantan 6J40 | New Constantan 6J11 | Manganin 6J12 | Manganin 6J8 | Manganin 6J13 | |
| Composition | Ni | 1~2 | 10.5~12.5 | 11~13 | 8~10 | 11~13 |
| Cr | 39~41 | -- | 2~3 | -- | 2~5 | |
| Fe | REST | REST | REST | REST | REST | |
| -- | AI2.5~4.5 Fe1.0~1.6 | -- | Si1~2 | |||
Temperature Range for Components | 5~500 | 5~500 | 5~45 | 10~80 | 10~80 | |
| Density g/cm3 | 8.88 | 8 | 8.44 | 8.7 | 8.4 | |
| Resistivity μΩ.m,20 | 0.48±0.03 | 0.49±0.03 | 0.47±0.03 | 0.35±0.05 | 0.44±0.04 | |
| Extensibivity %∅0.5 | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | |
| Resistance Temperature Quotiety ∂,10 -6/ | -40~+40 | -80~+80 | -3~+20 | -5~+10 | 0~+40 | |
| Thermoelectromotive force to copper μv/(0~100) | 45 | 2 | 1 | 2 | 2 | |
